MFS Manual Undercut Drill Machine Catalog

Product Name: Manual Undercut Drill Machine

Brand: MFS

Model No.: JR1042

Country of Origin : China

Usage: Used for drill the special hole forundercut anchor in Stone,Granite,Ceramic Tile.

Technical of Machine:

Specialty of Portable Drill Machine:

Easy to Take,Best Quality,Low Price.

1.Reasonable structure design, portable,simple operation and strong practicability.

2.It’s use Bosch motor, high speed, lowenergy consumption, stable performance, long service life, etc.

3.Suitable for all kinds of stone material,ceramic plate, glass plate, plate, marble back bolt hole drilling of variousplates of work and its hole. This machine is applicable now stone curtain wall,glass curtain wall project need all dry hanging back bolt holes.

4.Borehole Rio as a molding, as easy tocarry and operation can be either a single operation also can use the combinedmachine! Also can cooperate with large punching machine as a back pin hole forsingle and scattered living ending! Use of flexible, reduces the plates move.

5. Cooperate with the use of bit: cooperatewith the use of M6 and M8, etc all kinds of sintering type diamond stone drillhead.

Using Cautions

1.Insert the power supply, it must beinstalled leakage protector, and make the power cord from the ground to keep acertain distance;

2. The equipment must first open the watervalve, before running for bit front there is water overflowing, may start;

3. Ensure the cooling water pressure in the3 kg/cm2, and keep the water without sundry, to prevent clogging.

4. Manual drilling, down tinto hole areforbidden to handle. After the straight hole in place, can be the Rio holehandle. Both drilling and its hole, don't handle pressure is too large, themovement wants. Bore Rio is completed, should be loose pioneering handle, andthen let go of drilling handle.

The Size of Undercut Drilling Hole

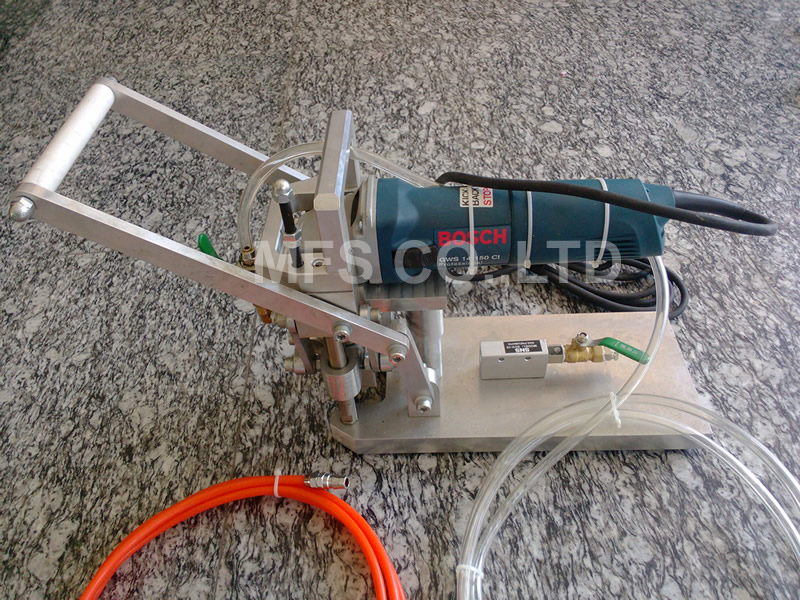

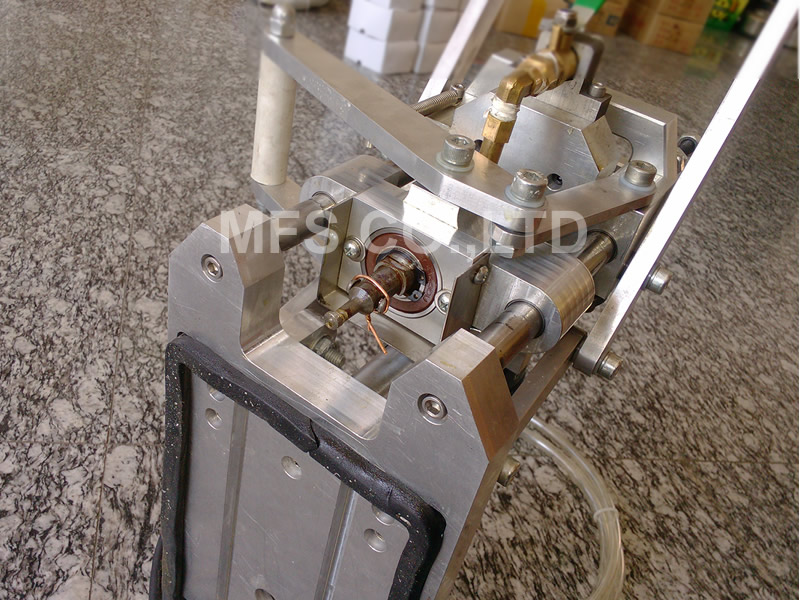

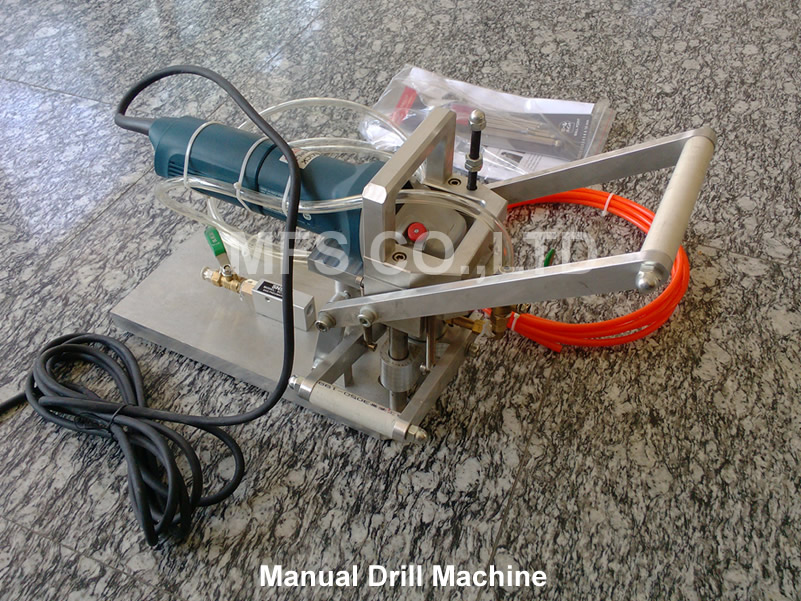

Photos of MFS Manual Drill Machine
